NARROW FABRIC WEAVING SYSTEMS
NXCJ

For jacquard-patterned articles in warp effect.

Create distinctive patterned ribbons with ease – advanced jacquard technology at practical cost for everyday production needs.

  • Electronically controlled Jacquard machine SPE3 384 or SPE3 768
  • Bottom shed reading technology for precise pattern creation
  • 12 harness frames for complex weaving patterns
  • Chain link regulator with 1:8 / 16-32 options
  • Pattern repeat capabilities of 320/384 or 512/640/768 depending on model
  • Solid construction designed for high-speed operation
  • Optimized design combining proven NF and VARITEX Jacquard technologies
  • Excellent price-to-performance ratio for jacquard pattern production
  • Minimized support and maintenance requirements
  • Simple operation with easy access to machine components
  • Field-tested machine concept recognized in global markets
  • Compact design relative to pattern-making capabilities
  • Elastic and non-elastic tapes with woven-in logos
  • Name-branded textiles and ribbons
  • Symbolic and decorative pattern applications
  • Fashion decoration articles in warp effect
  • Creative textile designs requiring 384 up to 768 harness cords
  • Pattern creation with 4-12 shaft frames
  • Enhanced product differentiation through sophisticated jacquard patterns
  • Improved market positioning with higher-value textile products
  • Reduced operational costs through optimized design
  • Quick return on investment through balanced acquisition cost and output quality
  • Versatile pattern creation without extensive technical training
  • Developed specifically to enhance competitiveness in markets demanding intricate designs
  • Backed by Jakob Müller’s established reputation for quality jacquard machinery

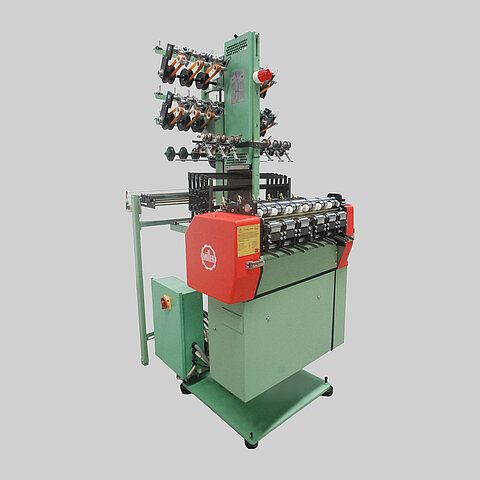

Bandwebsysteme NXC
ModelsNXCJ 4/66 NXCJ 6/42
Number of spaces46
Max. reed width [mm]6642
Number of harness frames2020
Number of hooks 192 / 384 / 768192 / 384
Regulator1:8 / 16-32, chain link1:8 / 16-32, chain link
Motor3 kW, 3 phase2.2 kW, 3 phase
Dimensions [mm] L×W×H 2700×1200×35001700×1200×2860



Developed by Jakob Müller China by combining the strengths of industry-leading NF and VARITEX Jacquard technologies to meet market demands and customer needs for intricate pattern weaving.
