Rope Weaving Systems

Rope Weaving Systems

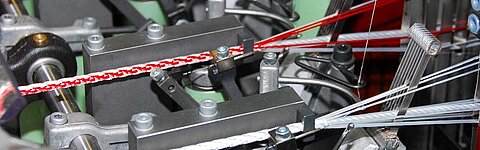

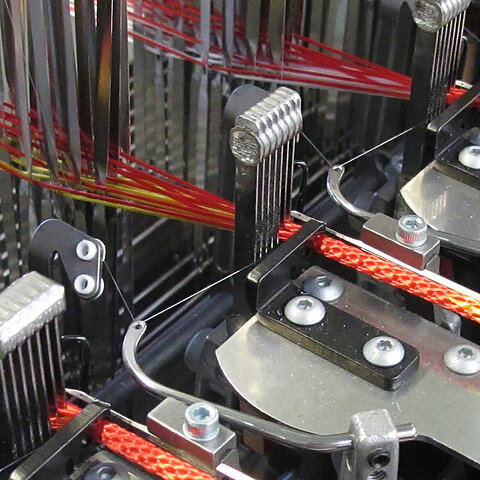

NH2M 53

For MultiSphere rope weaves.

  • Based on proven narrow fabric needle loom technology
  • Machine robustness and reliability
  • High production speeds
  • Rope diameters of 1 – 8 mm
  • Straightforward machine operation
  • Pattern control via pattern chain with cam disc plates for simple structures
  • Warp thread take-off from bobbin creels or warp beams
  • Special solutions for product laying and winding
  • High productivity and low production costs
  • Considerably longer, knot-free, woven items due to the extended yarn lengths available on bobbins/warp beams as compared to those from braiding bobbins
  • Warp beams with over 5,000 m of yarn and in addition, the possibility of using a creel with reserve bobbins
  • Longer running times without bobbin changes as compared to braiding; so-called "ghost shifts” are possible
  • Excellent mechanical characteristics as compared to braided structures
  • Strength at 1 and 2 mm diameters meets the requirements of the DIN standard
  • Comparable strength at diameters of between 3 and 4 mm
  • Far higher strength at a thickness of 5 mm and above
  • Stress-strain curve comparable with that of braided ropes
  • Differing patterns provide diverse surface structures and rope characteristics
Rope Weaving Systems NH2M 53
Machine type NH2M 53 4/D8 NH2M 53 8/D4
Number of spaces 4 8
rope diameter 4 – 8 mm  1 – 4 mm
weaving systems I, II I, II
shed drive Electronical shaft motion Electronical shaft motion
number of sheds 16 16
number of weft threads per cm 5 – 60 5 – 60
Max. energy recuperation 1 kW 1 kW
