MFR 22-H

SYSTEMS FOR DYEING / FINISHING / COATING

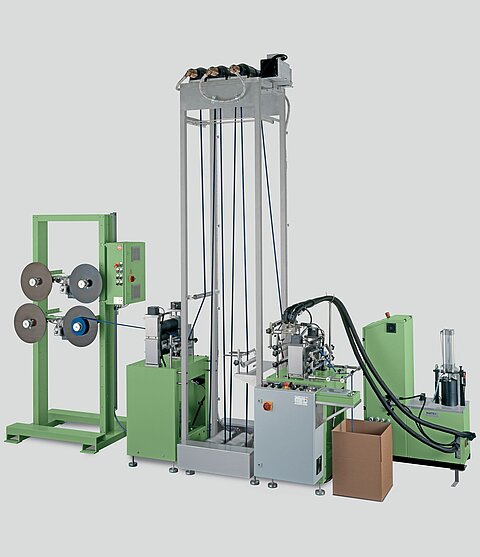

MFR 22-H - HOT MELT COATING MACHINE

For coating [hot melt adhesives of various types] elastic and non-elastic ribbons, hook and loop fasteners, woven labels, medical ribbons, technical ribbons.

  • Important: Electronic regulation of the coating quantity depending on the speed
  • Melting of the hotmelt glue inside of a heated tank
  • Transportation of the melted hotmelt through heated tubes to the coating head by a toothed wheel pump
  • Heated coating head with coating nozzles
  • Coating nozzles in different widths and shapes
  • Coating with a constantly adjustable ribbontension
  • Pneumatic control of the coating nozzles
  • Depending on the kind of glue, one can work with or without silicone paper cover
  • Ribbon winding up with constant tension
  • Elastic and non-elastic ribbons
  • Hook and loop fasteners
  • Woven labels
  • Medical ribbons
  • Technical ribbons
Systems for Dyeing / Finishing / Coating MFR H-22
Roller width [mm] 300
Capacity of the hotmelt tank [ l ] 30
Coating temperature up to [°C] 210
Max. adjustable speed [m/min] 30
