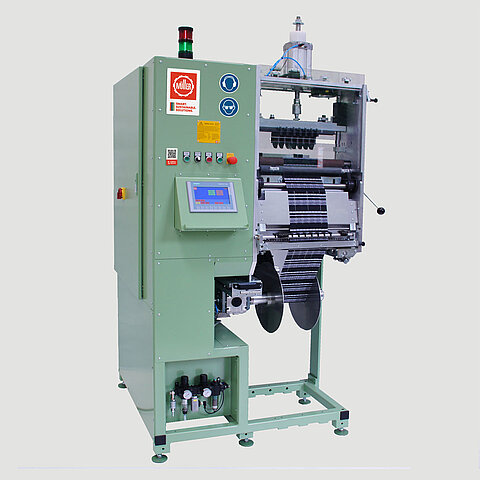

MÜSONIC3 - ULTRASONIC LABEL SLITTING MACHINE

For the parallel cutting of rolls to final label widths and with very fine edges.

The MÜSONIC3 cuts label strips ultrasonically taken from supply rolls to the required width for optimal further processing. The cutting area is compressed by a selvedge pre-compactor prior to cutting, leading to fine edges free from filaments.

  • Unvarying cut edge quality
  • Selvedge pre-compactor for optimal cutting preparation, pressure continuously adjustable
  • Minimum waste
  • Stable, compactly wound label rolls for optimal downstream processing
  • No forerunner needed thanks to precise infeed and offtake
  • Simple handling, speedy knife adjustment
  • Long sonotrode life owing to low compressive force
  • Cutting quality can be verified during cutting
  • Sonotrode amplitudes individually variable with automatic adaptation to speed
  • High productivity
  • Ergonomic design
  • Cutting elements at eye level
  • Running direction from rolls rear to front: better visual supervision
  • Low maintenance costs
  • Modest space requirement
  • Pneumatic winding axles
  • Thermofixing device 200 mm
  • Core diameter 40 mm or 50 mm
  • Ultrasonic welding device
  • External winders (BWW / BWF)
Label Production Systems MÜSONIC3
Roll width [mm] max. 280
Label width [mm] min. 10 [special execution for 6 mm width]
Machine speed 1.5–60 m/min
Suitable materials all fusible fibres, also blends with cotton up to 66%
