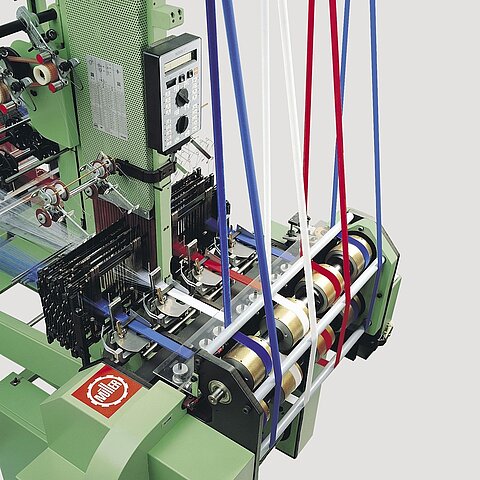

NF53...S

NARROW FABRIC WEAVING SYSTEMS
NF53...S

For elastic and non-elastic velvet narrow fabrics.



Concept

With the type NF53...s, Müller can offer a machineon which elastic and non-elastic velvet ribbons ofhigh quality can be manufactured economically.

Economical because:

  • the weft needle and reed movements can be adjusted to match the reed width
  • the cost/benefit ratio is right from the very start
  • the cutting blade is sharpened automatically, providing perfect cutting quality
  • the machine is easy to operate
Narrow Fabric Weaving Systems NF53...s
Models 6/27 8/27 6/42 4/66 2/130
Number of spaces 6 8 6 4 2
Number of tapes 12 16 12 8 4
Max. reed width [mm] 18 15 35 20 | 33 | 45 | 62 130
Max. tape width [mm] | 15 13 32 18 | 30 | 42 | 59 122
Pile height standard 2 x 2,0 mm
Pile thread feed and compensation positive
Shedding motion 12 – 18 harness frames
Repeat cams 1:8
  pattern chain 1:8, 16 – 48

Important features:

  • Various models available for picot on both sides
